BLACK EDITION
HV
SW-2210SG+ BE
45.0 kg/cm |0.1 s/60° |8.4V
Original Brushless
Line
Application
Servo Size
Operating Voltage
Speed
Torque
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
LineBLACK EDITION
ApplicationCAR / BOAT
Servo SizeStandard
Operating Voltage6.0V-8.4V
Speed0.1 s/60°
Torque45.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeOriginal Brushless
Case TypeHybrid (Aluminum/Composite)
ProtectionWaterproof (IP67)
Dimensions40.76 x 20.74 x 42 mm
Weight79 g

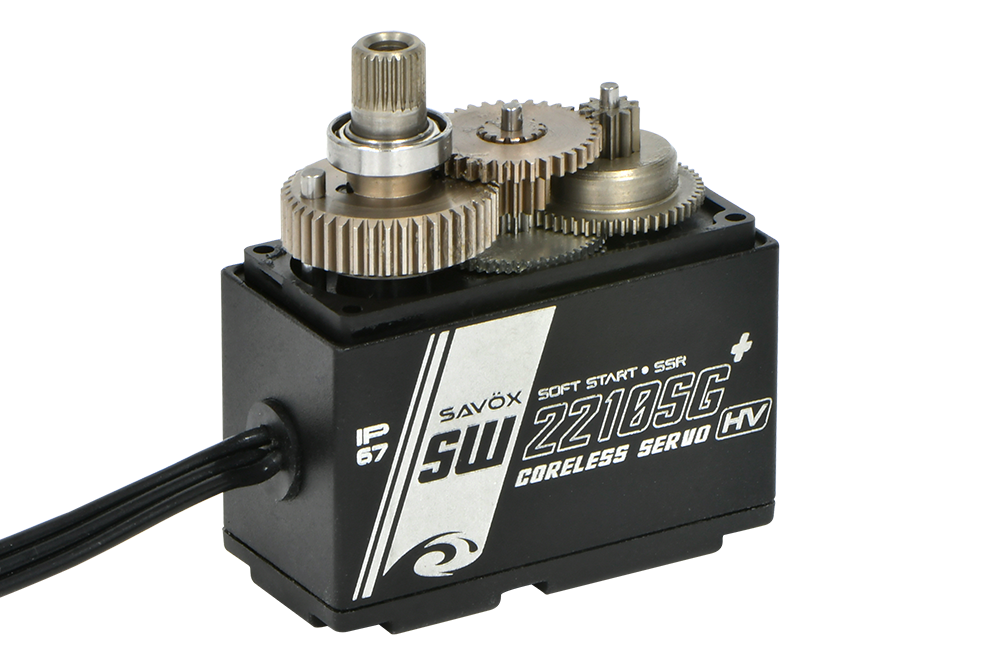

Gear TypeHeavy-Duty Metal
Waterproof Showdown: SW-22290SG vs SW-2210SG
This side-by-side video compares Savox’s top waterproof servos — highlighting the aluminum-case 22290SG and the more budget-friendly 2210SG.
Choose the best fit based on performance needs and price point.
A sleek, all-black design applied to our most trusted servo platforms. Black Edition models take the proven internals from other Team Savox lines and wrap them in a clean, stealthy finish.
Perfect for clean builds, custom chassis, or anyone who wants standout performance with low-profile styling. Same power - just darker.
Size
Full specification
Line
Application
Servo Size
Operating Voltage
Speed @6.0V
Torque @6.0V
Speed @7.4V
Torque @7.4V
Speed @8.4V
Torque @8.4V
Amplifier Type
Motor Type
Case Type
Protection
Dimensions (L x W x H)
Weight
Gear Type
Compability
PCB Board
Horn Gear Spline
LineBLACK EDITION
ApplicationCAR / BOAT
Servo SizeStandard
Operating Voltage6.0V-8.4V
Speed @6.0V0.14 s/60°
Torque @6.0V30.0 kg/cm
Speed @7.4V0.11 s/60°
Torque @7.4V40.0 kg/cm
Speed @8.4V0.1 s/60°
Torque @8.4V45.0 kg/cm
Amplifier TypeDigital Controller
Motor TypeOriginal Brushless
Case TypeHybrid (Aluminum/Composite)
ProtectionWaterproof (IP67)
Dimensions40.76 x 20.74 x 42 mm
Weight79 g
Gear TypeHeavy-Duty Metal
CompabilitySanwa SSR
PCB Board8-bit
Horn Gear Spline25T(Φ6)
Rotating Direction
Max Travel
Operating Travel
Neutral Position
Bearing
Potentiometer
Cable Diameter
Cable Length
Connector
Stall Current @6.0V
Operating Current @6.0V
Stall Current @7.4V
Operating Current @7.4V
Stall Current @8.4V
Operating Current @8.4V
Idle Current
Dead Band Width
Frequency Range
Control System
Operating Temperature
Rotating DirectionCounterclockwise (when 1000→2000 μsec)
Max Travel~130° (when 800→2200 μsec)
Operating Travel100° (when 1000→2000 μsec)
Neutral Position1500 μsec
Bearing2x Ball Bearings
PotentiometerVR
Cable Diameter26 AWG
Cable Length450 ±5 mm
ConnectorJR Connector
Stall Current @6.0V6000 mA
Operating Current @6.0V180 mA
Stall Current @7.4V7400 mA
Operating Current @7.4V200 mA
Stall Current @8.4V8400 mA
Operating Current @8.4V220 mA
Idle Current5 mA
Dead Band Width3-5 μsec
Frequency Range50-360 Hz
Control SystemPulse width modification
Operating Temperature-10°C to 50°C
